API Casing
CLASSIFICATION :
KEYWORDS :
API Casing
MOQ :
2 TONS
CUSTOMIZED:
Customized Logo , Customized Packaging , Product Customization
PRODUCT DETAILS
Description
Casing is used for lining the complete borehole which has been dug into the ground to procure oil. Similar to the drill pipe, the oil well casing pipe is also subjected to axial tension, therefore they are required to be made from high-quality strong steel material. OCTG casing is large diameter pipe which are held in place in the borehole using cement.
The diameters of OCTG casing pipe range from 4.5″ to 36″. The well-cemented pipe acts as the structural component of the well and offer hole integrity. They prevent the well from collapsing when the drilling process is on. Good quality, well cemented casing can stay in place for the whole life of the well.
The oil well casing pipe are further divided into:
Conductor Casing – Conductor casing is the first boundary between the surface and the subsurface. It helps prevention of well collapse; it keeps away the groundwater and most importantly provides structural support. Conductor casing is installed in the ground by either drilling it or hammering it down. They are available in sizes ranging from 18″ to 36″.
Surface Casing – The purpose of Surface casing is primarily environmental and to ensure safety. It helps in separating the freshwater zones, offering protection from blowout and supporting the wellhead and blow out prevention equipment. Therefore surface casings are required to maintain very high safety standards. They are responsible for supporting the next casing in line. They may vary in size depending on their purpose, but the most common size of surface casing is 13 3/8”.
Intermediate Casing: Intermediate casing is not always required in all types of oil and gas production. If used, they are placed between the surface and the production casing. They are available in sizes ranging from 13 3/8” to 16”.
Production Casing – Production casing help provide structural integrity and pressure control of the hydrocarbon-bearing sections mainly during the production of oil.
Production Liner – Production liners can be suspended from the production casing or one of the previous casings. They help in reducing the cost significantly as the liner is not required to run through the full depth of the well. Liners can be pre-perforated to help save time and cost.

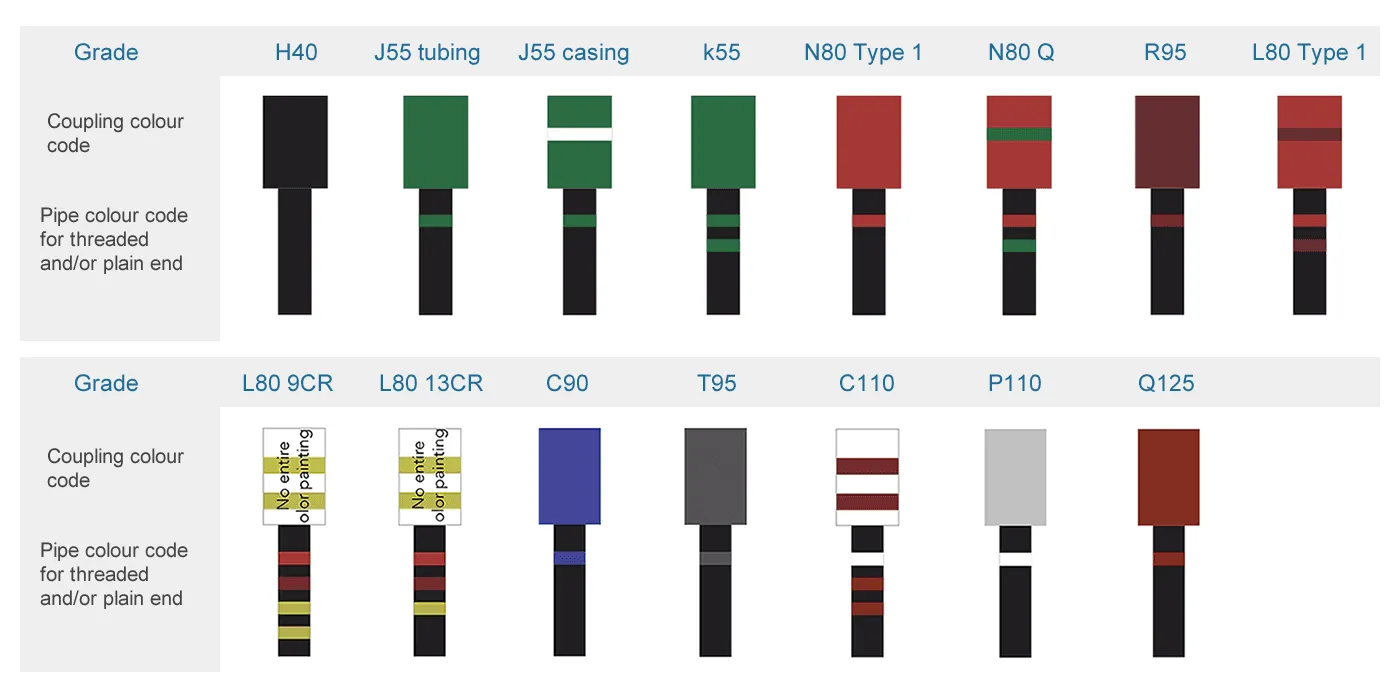

More casing pipes and their colors
Specification
API 5CT Well Casing Length:
|
API 5CT Casing |
Range 1 |
Range 2 |
Range 3 |
|
4.88~7.62 |
7.62~10.36 |
10.36~14.63 |
Dimension
| Labels | OD(mm) | WT(mm) | J55/K55 | N80 | L80 | C90/T95 | P110 | Q125 | |
| 4 1/2 | 9.5 | 114.3 | 5.21 | PS | - | - | - | - | - |
| 10.5 | 114.3 | 5.69 | PSB | - | |||||
Jiangsu Hengdali Steel Industry Co., Ltd. is a modern enterprise integrating production, processing and trade, and is a leading iron and steel enterprise group in China.
The main products of the company: seamless steel pipe, steel plate, round rod, galvanized pipe, galvanized sheet, copper plate, copper pipe, aluminum plate, aluminum tube, PPGI,PPGL, stainless steel plate, stainless steel tube, stainless steel belt, stainless steel products, etc.
Packing and shipping
Our products rely on high-quality product quality, good reputation, and innovative marketing concepts, selling well overseas, such as the United States, Europe, the Middle East, Southeast Asia, Japan, South Korea and other more than 80 countries around the world, with close and good trade partnerships.
Application field
The company has established strategic partnership with well-known iron and steel enterprises to achieve effective integration of production, supply and marketing resources and further improve product quality. Through years of unremitting efforts and hard work, the company builds a reputation system with excellent quality, and trusts merchants with comprehensive and meticulous service.
Customer visit
Application Areas
We guarantee you a product at a competitive price and we will be at your service to meet all your specifications and needs.
Integrating production, processing and trade
The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, etc.
Petroleum
Marine Exploration
Coal Mine
Architectural Engineering
Electric Field
Boiler Field
Petroleum
Marine Exploration
Coal Mine
Architectural Engineering
Electric Field
Boiler Field
CERTIFICATE
FAQ
Q2:What product information do I need to provide?
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q5:What ports of shipment are there?
Q6:What is your terms of payment ?
